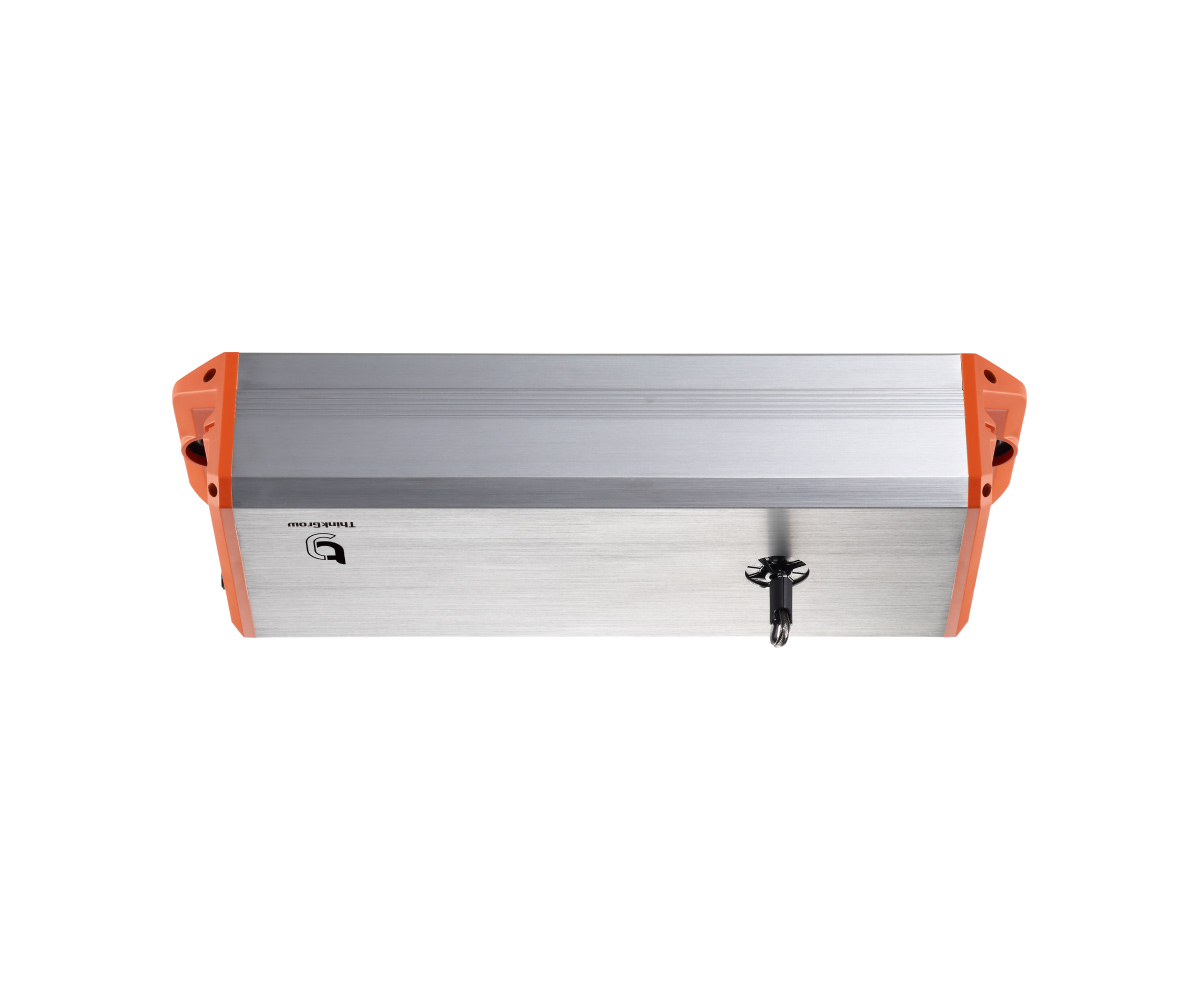

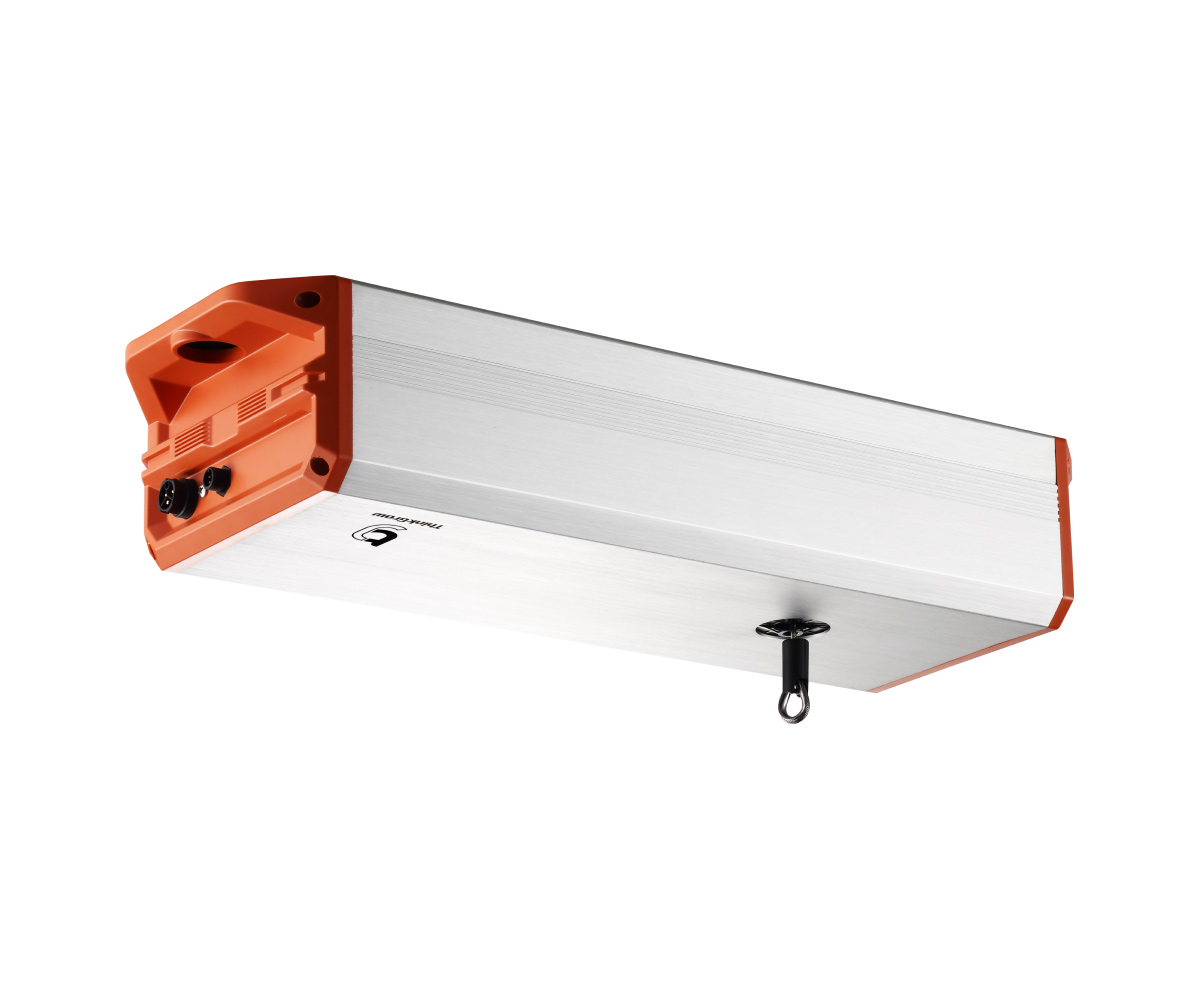

ThinkGrow Smart Light Lifter (Cable Kit Included)

ThinkGrow LED Smart Light Lifter System

The LLT-1 light lifter is part of the ThinkGrow modular light lifter system. Its cutting-edge synchronized multi-lifter operation provides users with a customizable, expandable and easy-to-install system. The lifter is ETL listed and the cable can lift up to 132 lbs, 8.8ft.

The light lifter design enables easy, two-man installation. Unlike the traditional complicated lifter system where precise calculation and teams of engineers are needed, the LLT-1 reduces assembly time and manpower without compromising quality or safety. The easily expandable modular lifter system provides maximum flexibility and user customization.

The light system can also connect to the Hydro-X Pro Control System for additional features. The LLT-1 can lift and lower multiple lights and connect to other LLT-1 lifters via daisy chain data cables, enabling users to connect, control and program synchronized operation on multiple light lifters, from a single controller.

Achieve Maximum Light Efficiency with ThinkGrow

To achieve maximum light efficiency, the distance between the LED light and plant canopy should be maintained at a close and ideal distance. When grow lights are hung too high over the plants, much of the light energy is lost before it can reach the plants. An ideal light lifter system allows Light levels to be dimmed to a lower power level while still providing the desired PPFD and proper light spread on the plants. Being able to easily raise and lower the fixtures at the desired height level provides the user with higher overall lighting efficiency.

Maximizing light efficiency in a large-scale growing facility will save an immense amount of energy over time. Grow rooms with a practical light lifter system installed can easily raise and lower the LED light to achieve and maintain this ideal distance throughout the plants’ life cycle.

What’s included?

• 1 x ThinkGrow Smart Light Lifter (LLT-1)
• 1 x Power Cable
• 1 x Signal Cable

Specifications

• Power Input
• Voltage: 110-240 V, 50/60 Hz
• Power: ≤100W
• Product Dimensions
• Size: 20.9” / 530 mm(L) x 7.29” / 185 mm(W) x 4.17” / 105.8 mm(H)
• Weight: 22.7lbs / 10.3kg
• Packaging Dimensions and G.W.
• Size: 22.51” / 572 mm(L) x 10.31” /265 mm(W) x 7.67” / 195 mm(H)
• Weight: 22.89 lbs / 10.38 kg
• Lifting Capacity
• Lifting Range ≤ 8.8 ft / 2.7 m / 106 inches
• Maximum Lifting Weight ≤ 132 lbs / 60 kg
• Working Environments
• Temperature 32-104°/ 0-40°C
• Humidity ≤90%
