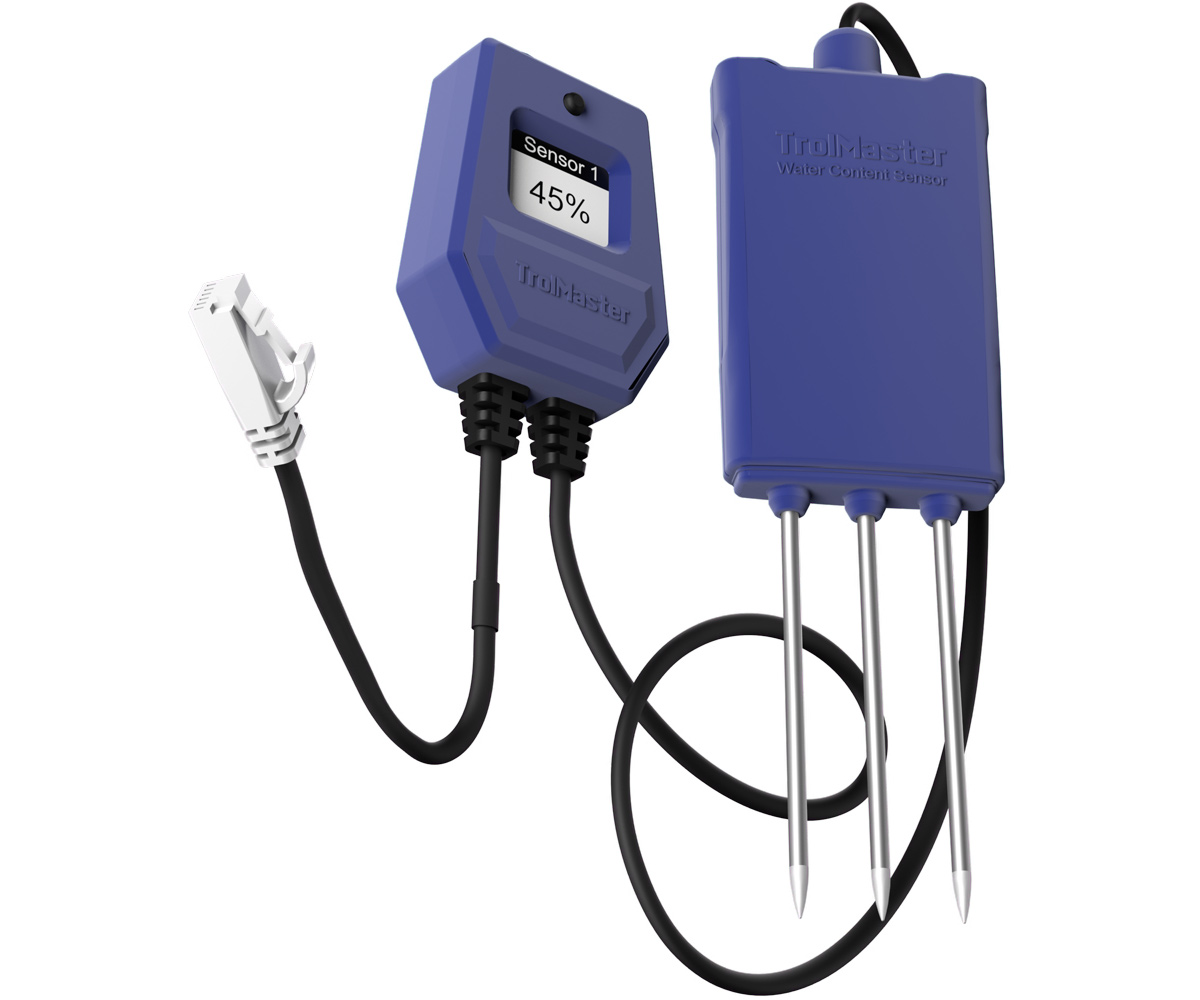

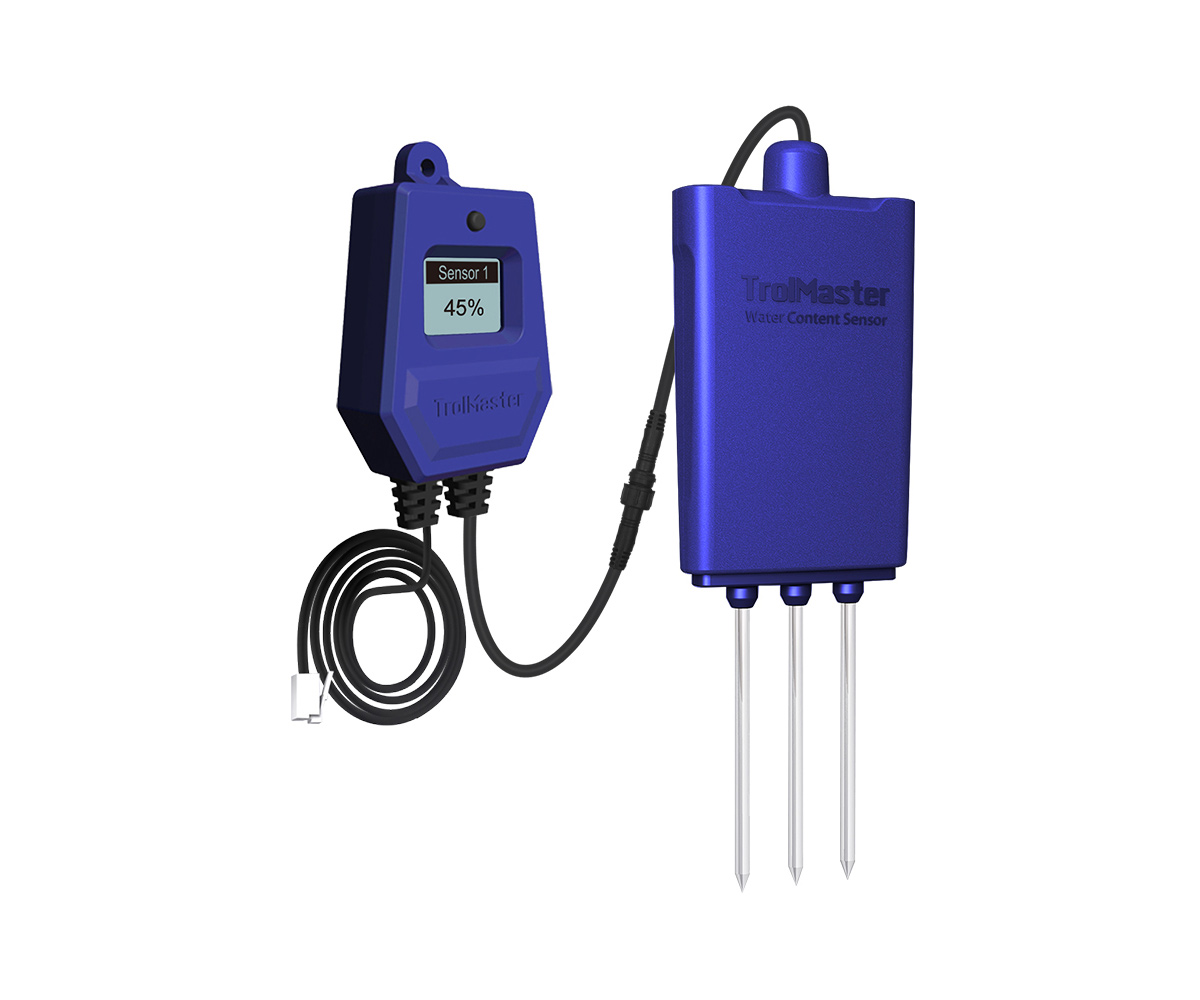

TrolMaster (WCS-1) Water Content Sensor for Aqua-X System
TrolMaster’s WCS-1 water content sensor allows the user to monitor the % of water / nutrients within the growing medium. The moisture level / water content is displayed in real-time on the WCS module itself, the Aqua-x (or Hydro-X Pro) and the APP. That data is displayed on a graph (through the APP) and helps the user visualize the dry-down time, and to make adjustments to their irrigation timers / irrigation cycles.
Up to 8 WCS-1 can be connected to a single Aqua-x. When multiple WCS-1 are connected to a single Aqua-X, the displayed value on the Aqua-x and APP will be the AVERAGE of all of the sensors.
Features & Benefits:
- LCD Display, Easy Operation
- Addressing Button
- Water Content Real-time Measuring Water Content
- Alarm When Setpoint Exceeded
Package Content:
- 1 x Water Content Sensor
- 1 x RJ12 T-Splitter
- 1 x 16ft RJ12 Cable
Specification:
- Input Voltage :12 VDC
- Max Input Current :0.1A
- Working Temperature :32°-122°F
- Working Humidity :≤90%
- Measuring Range :0~100%
- Packaging Dimensions :275mm(L) x 164mm(W) x 62mm(H)
