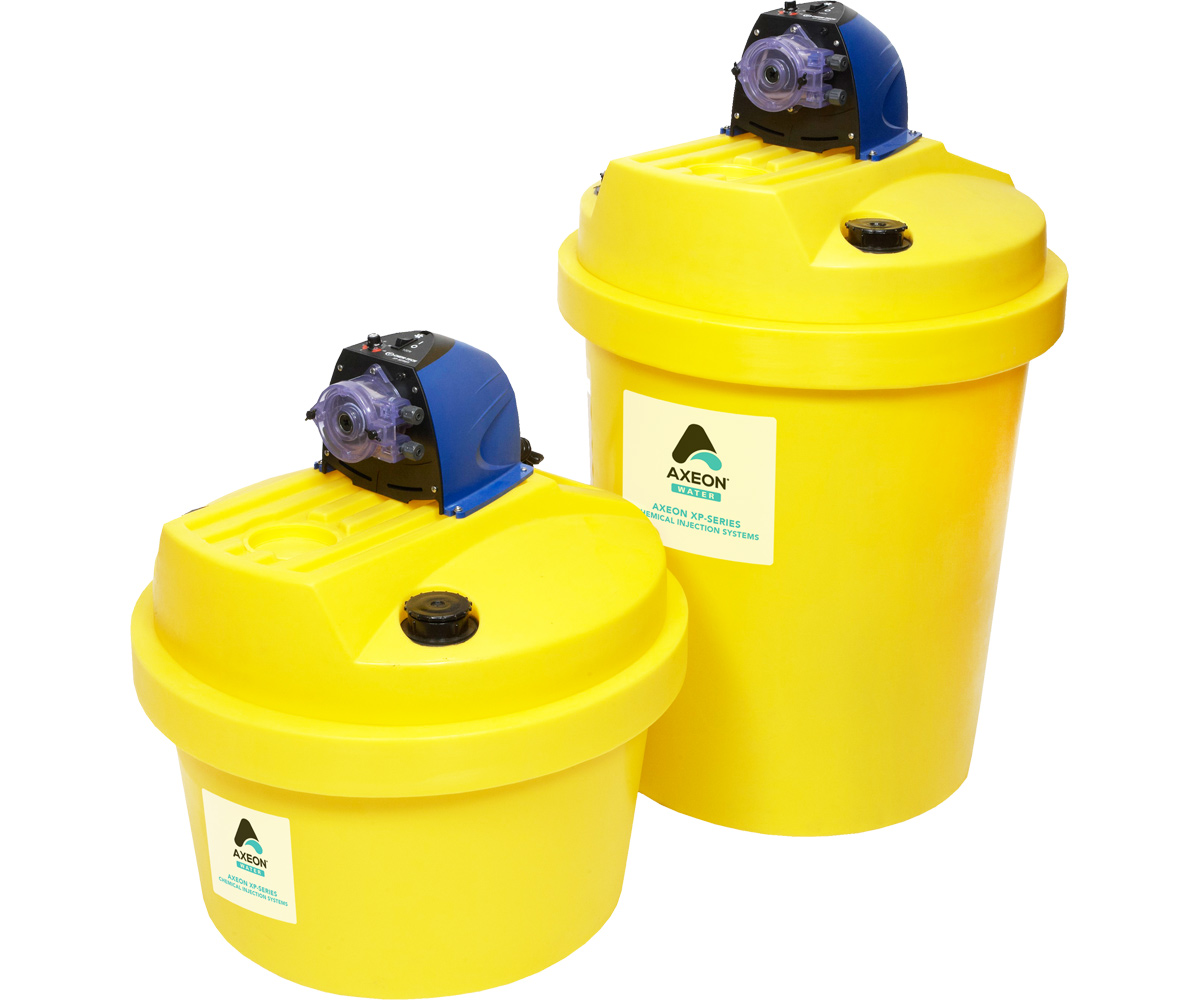

Name: AXEON 30 Gallon Tank and 4 GPD Chemical Injection System 110V
SKU: AXIS430
Availability: InStock

AXEON 30 Gallon Tank and 4 GPD Chemical Injection System 110V

$2,090.73

AXEON ® Chemical Injection Systems offer a wide range of capacities to meet various chemical treatment applications. Each system is composed of a chemical pump and polyethylene chemical tank, along with the necessary hoses and fittings for the pump.

The Chemical Injection Systems have been designed to the highest industry standards and are available in capacities from 4 to 30 GPO. These systems feature quality components and a compact space saving design, which allows for easy maintenance and servicing.

AXEON Chemical Injection Systems feature Pulsafeeder Chem-Tech™ Series XP pumps with peristaltic technology that delivers worry-free dosing in a modern design. Each component of the Series XP is designed and manufactured for optimum reliability and durability for real performance.

SPECS

Model: XP4-30
AXEON Part Number: 205600
Flow Rating (gpd /lph): 4/ 0.6
Tank Size: 30 Gallons
Turndown: 20:1
Voltage: 110V
Maximum Temperature: 104°F / 40°C

FEATURES

Electronic timer module provides a 20:1 turndown control for enhanced flexibility
Standard neoprene tube, resulting in extended tube life
Peristaltic technology offers optimum reliability
Rugged gear train
Output capacity from 4 to 30 GPD
Removable tank cover with 22° surface for mixer and mounting surface for chemical metering pump
Integral 2″ and 1″ female top connections and 5″ inspection port
100-pound rating tank cover
~5′ Power Cord Included

BENEFITS

Reliable metering performance
Mixed fluid capable, inherently degassing
Extended tube life
Rugged, sealed gear train
Easy tube change out
Self priming
Chemical resistant materials
Simple installation
Heavy-duty tanks compatible with acids, caustics, and most water treatment chemicals

APPLICATIONS
